Ball valve
| MOC | CF8 / CF8M / WCB C.S/ PP |
|---|---|
| Ball | CF8 / CF8M / CF3M |
| Mfg. Std. | BS 5351 |
| Size Range | 1/2" to 12" |
| Ball Valve | 2 & 3 Piece Design |
| Class | 150#, 300#, 600# |
| Ends | Screwed / Flanged / Socket Weld |
Forged Steel Ball Valve
| MOC | CF8 / CF8M/ASTM 105, F304 / F316 |
|---|---|
| Ball | CF8 / CF8M / CF3M |
| Mfg. Std. | BS 5351 |
| Size Range | 1/2" to 2" |
| Ball Valve | 3 Piece Design |
| Class | 800# |
| Ends | Screwed / Flanged / Socket Weld |

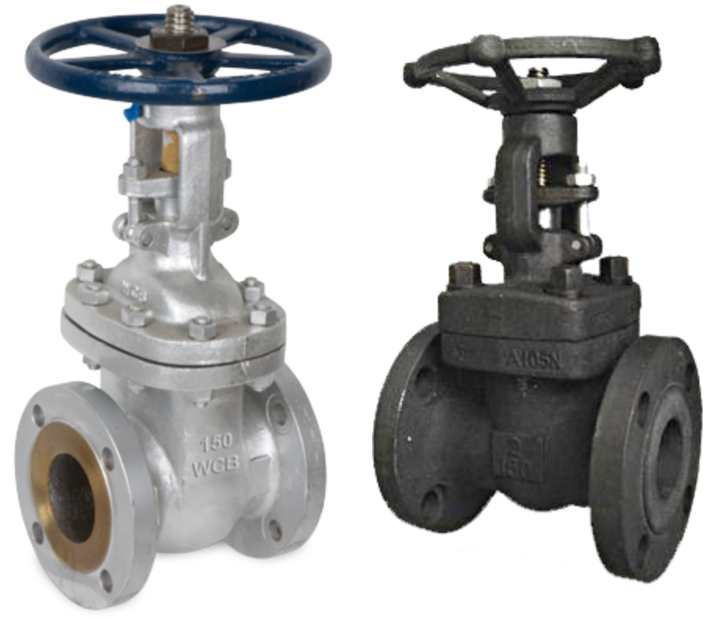

Gate Valve
| Range | Size | Class |
|---|---|---|
| Bolted Bonnet GTV | 15NB to 900NB | 150# to 600# |
| Forged Steel GTV | 6NB to 50NB | 800# to 2500# |
| Pressure Seal GTV | 50NB to 600NB | 900# to 2500# |

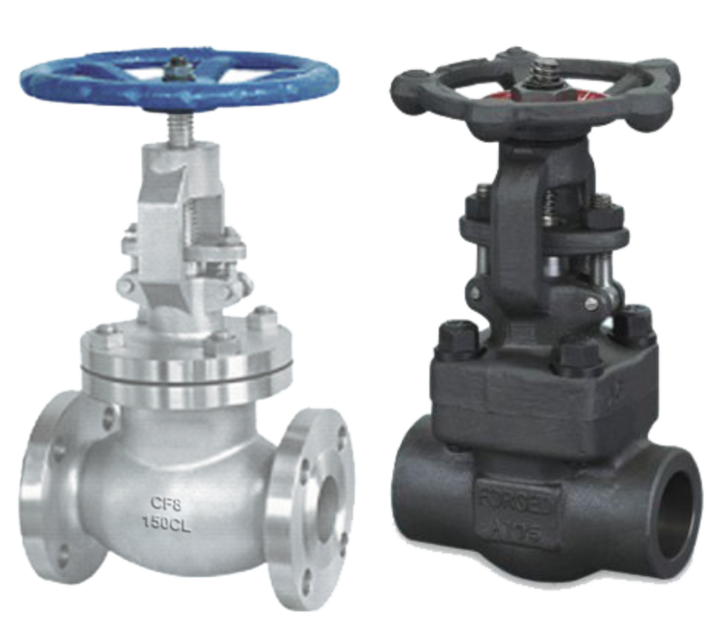

Globe Valve
| Range | Size | Class |
|---|---|---|
| Bolted Bonnet GTV | 15NB to 400NB | 150# to 600# |
| Forged Steel GTV | 6NB to 50NB | 800# to 2500# |
| Pressure Seal GTV | 50NB to 600NB | 900# to 2500# |

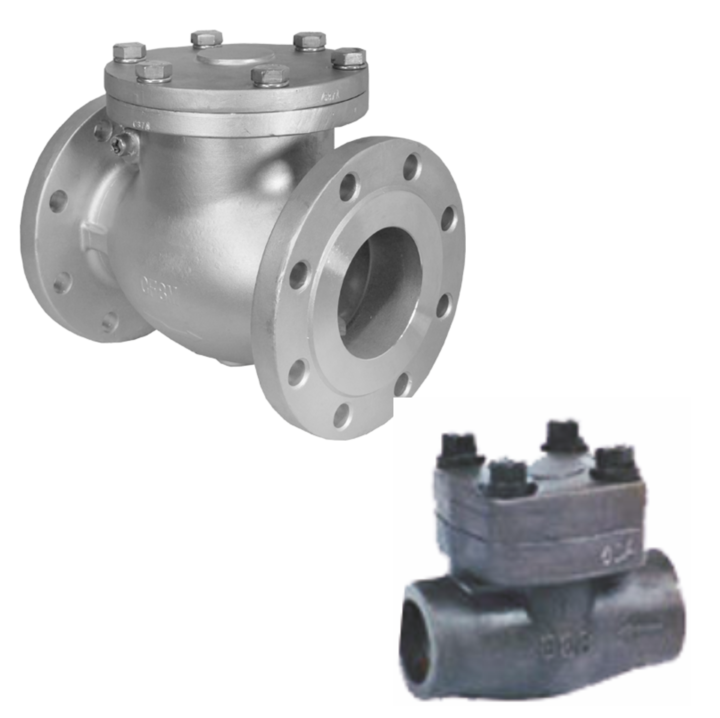

Non Return Valve
| Range | Size | Class |
|---|---|---|
| Bolted Bonnet GTV | 15NB to 900NB | 150# to 600# |
| Forged Steel GTV | 6NB to 50NB | 800# to 2500# |
| Pressure Seal GTV | 50NB to 600NB | 900# to 2500# |

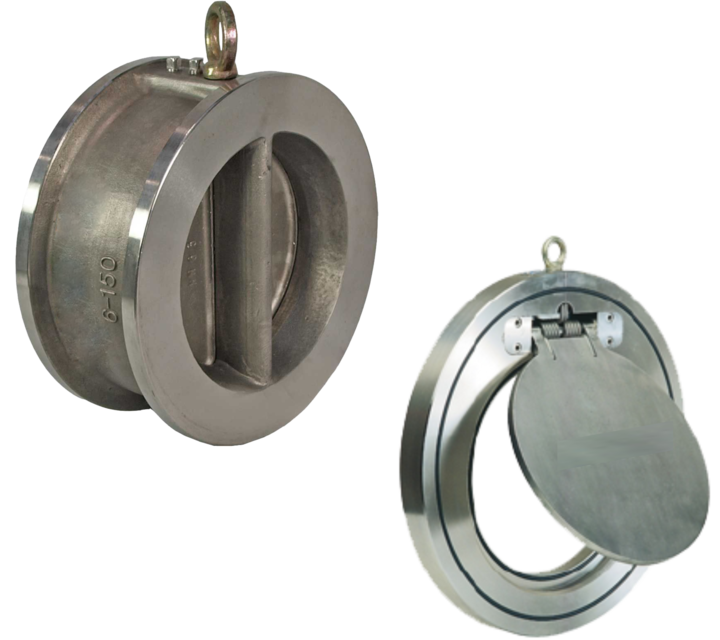

Wafer Check Valve
| Range | Size | Class |
|---|---|---|
| Bolted Bonnet GTV | AONB to 1000NB | 150# to 600# |
| Forged Steel GTV | 15NB to 300NB | 800# to 2500# |
| Pressure Seal GTV | 50NB to 600NB | 900# to 2500# |

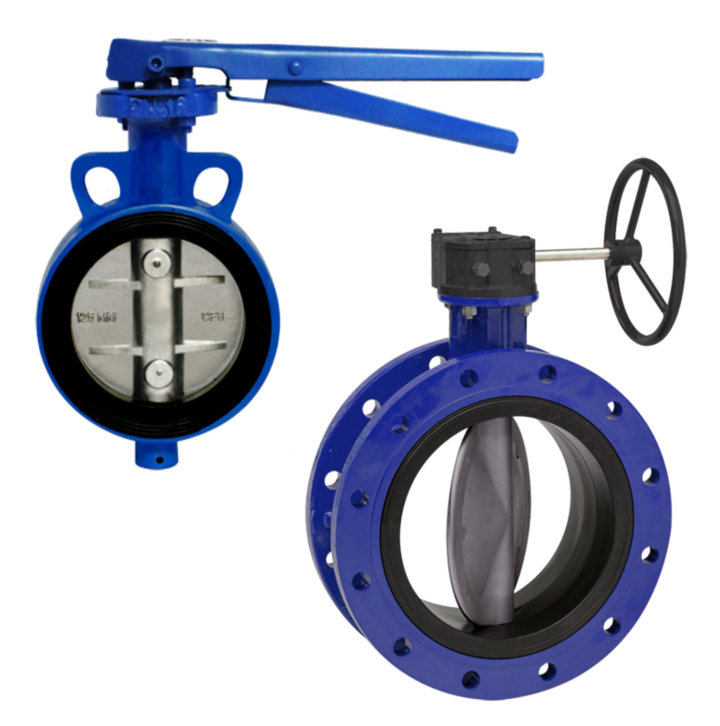

Butterfly Valve
| Operation | Lever / Gear |
|---|---|
| Size Range | 1.1/2" to 20" |
| Valve Body | Cast Iron |
| Disc | SG Iron / CF8 / CF8M |
| Seals | Nitrile / EPDM / Viton |
| Pressure Rating | PN 10/ PN 16 |
| Oper. Temp.Range | 80°C |

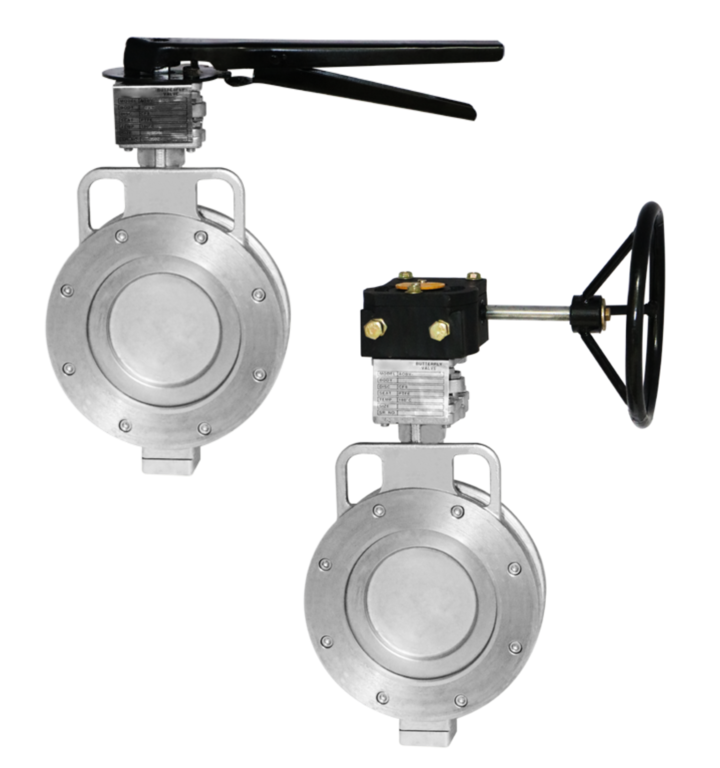

Off. Set Disc Butterfly Valve
| Operation | Lever / Gear |
|---|---|
| Size Range | 1.1/2" to 12" |
| Valve Body | CF8 / CF8M / WCB |
| Disc | CF8 / CF8M |
| Seals | PTFE Replacable / GFT |
| Mounting | Universal |
| Pressure Rating | ANSI 150# |
| Oper. Temp | 180°C / 220°C |
