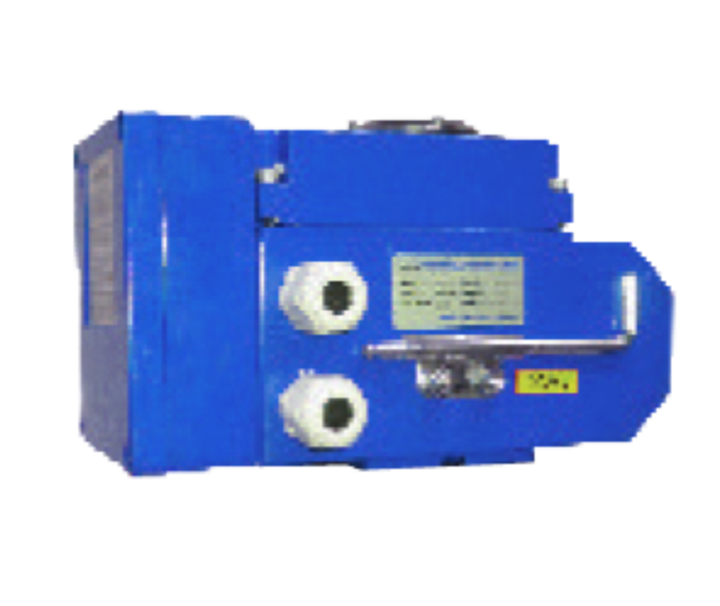

Power Supply | 230 Volts A/C |
---|---|
Rotation | 0- 90° |
Optional | Modulating 4 - 20 MA Input Signal & Output Signal |
Limit Switch | 1 No + 1 NC |
Position Indicator | Provided |
Maximum Temp. | -20°c + 70°C |
Operating Time | 20 To 30 Sec |

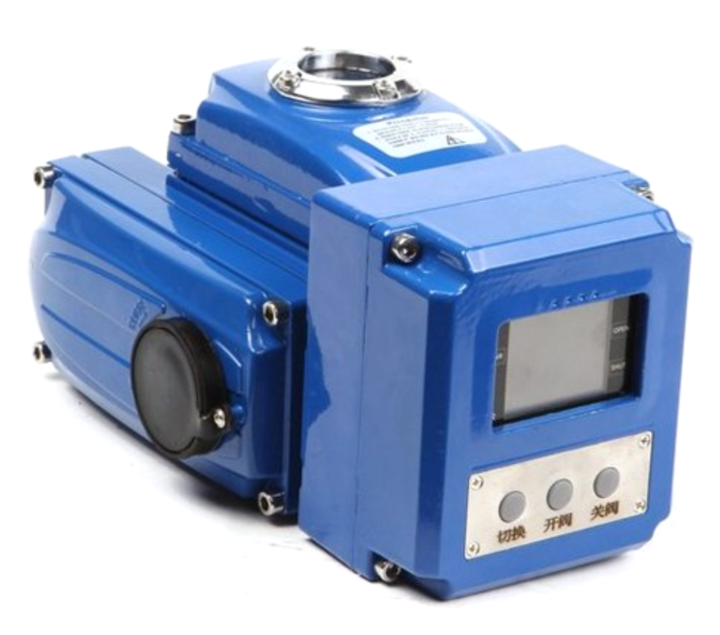

Power Supply | 230 Volts A/C |
---|---|
Rotation | 0- 90° |
Optional | Modulating 4 - 20 MA Input Signal & Output Signal |
Limit Switch | 1 No + 1 NC |
Position Indicator | Provided |
Maximum Temp. | -20°c + 70°C |
Operating Time | 20 To 30 Sec |
Actuator | Electrical |
---|---|
Size Range | 1/2" to 6" |
Ball Valve | 3 Piece Design |
MOC | CF8 / CF8M / WCB C.S/ PP |
Ends | Screwed / Flanged / Socket Weld |
Actuator | Electrical |
---|---|
Size Range | 1/2" to 4" |
Ball Valve | 3 Way / 4 Way |
MOC | CF8 / CF8M / WCB C.S/ PP |
Ends | Screwed / Flanged / Socket Weld |

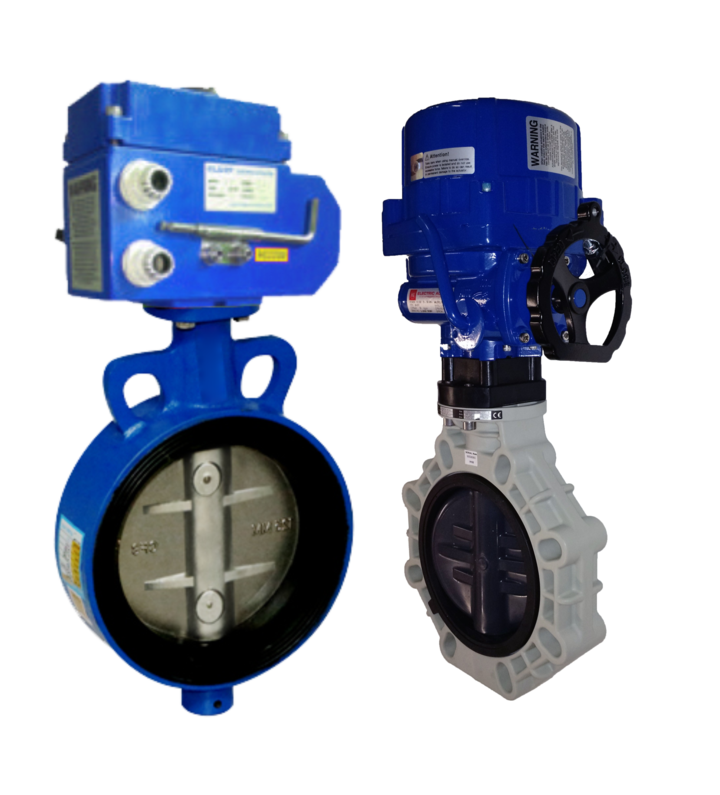

Actuator | Electrical |
---|---|
Size Range | 1.1/2" to 20" |
Valve Body | Cast Iron |
Disc | SG Iron / CF8 / CF8M |
Seals | Nitrile |
Pressure Rating | PN 16 (Max.) |
per. Temp.Range | 80°C |
Actuator | Electrical |
---|---|
Size Range | 1.1/2" to 12" |
Valve Body | CF8 / CF8M / WCB |
Disc | CF8 / CF8M |
Seat | PTFE Replacable / GFT |
Mounting | Universal |
Press. Rating | ANSI 150# |
pr. Temp. | 180°C / 220°C |

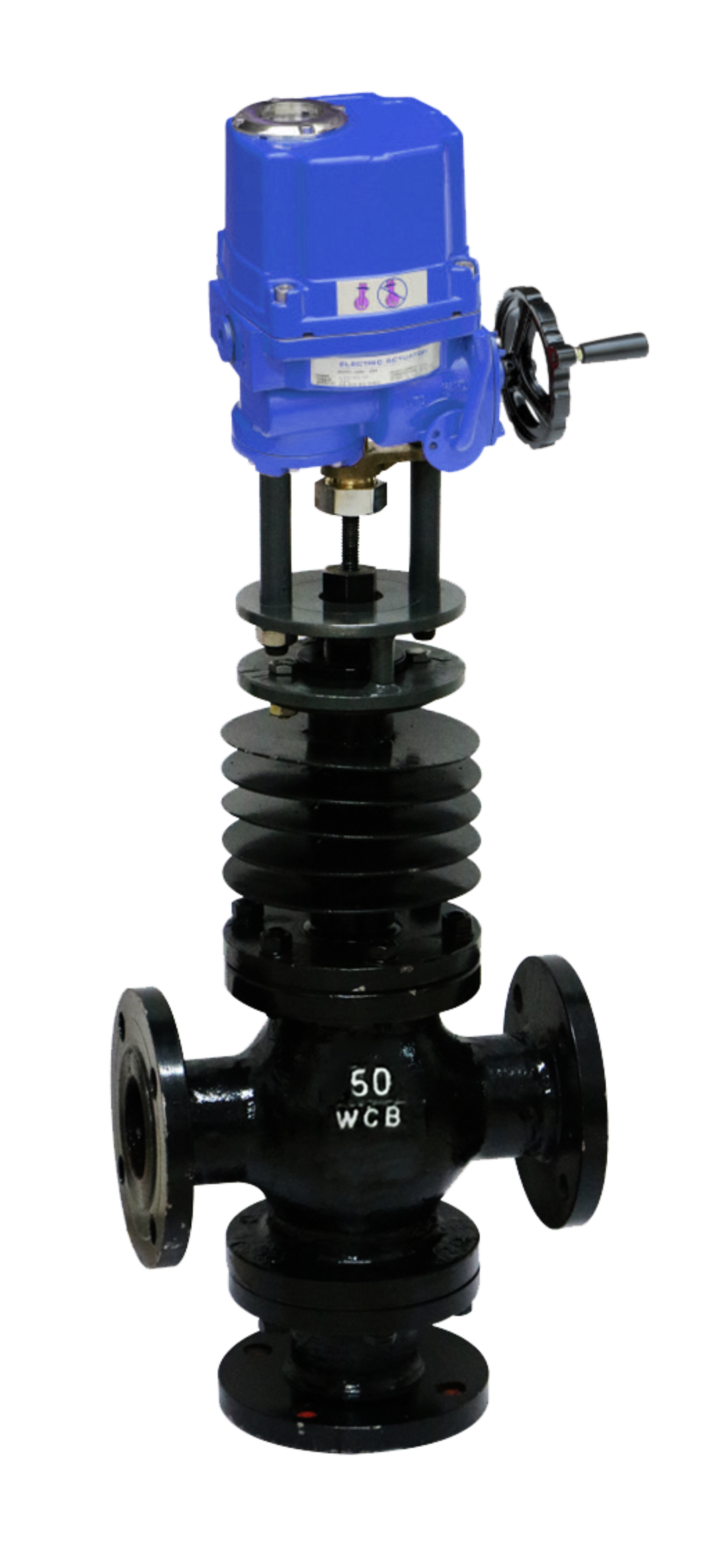

Operation | Electrical |
---|---|
Type | Diaphragm Type Thermic Fluid Control Valve |
Size Range | 1"to 8" |
Body & End Piece | WCB/S.S. |
Diaphragm | Nitrile Canvas Moulded |
Diaphragm Cover | Sheet, Metal, Pressing |
Working Press. | 150# |
Working Temp. | Upto 450 °C |
Seating | Metal to Metal |
Media | Thermic Fluid |

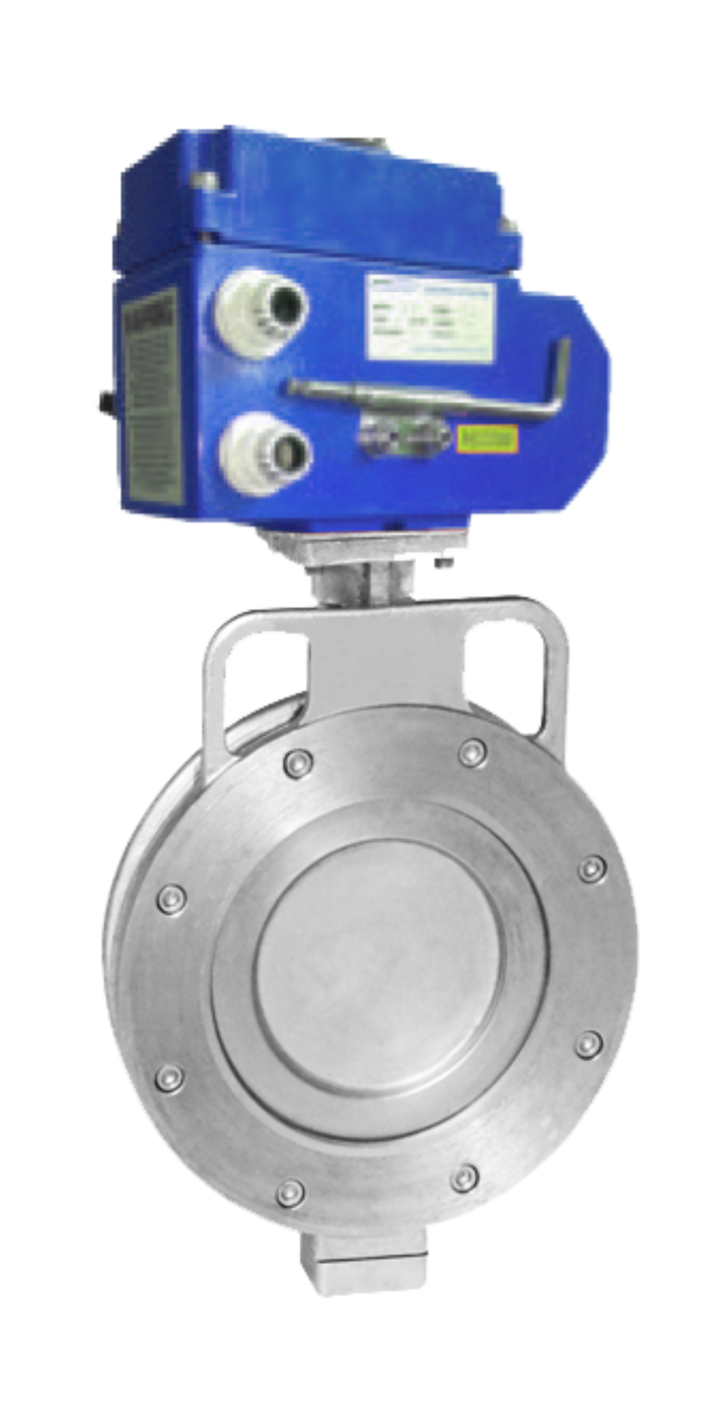

Operation | Electrical |
---|---|
Size Range | 2” to 20” |
Valve Body | Cl/CS/CF8/CF8M |
Seals | AISI SS 304 / 316 |
Gland Packing | Metal to Metal / NRV |
Leakage Class | Cotton Graphite Rope |
Ends | IV to V |
