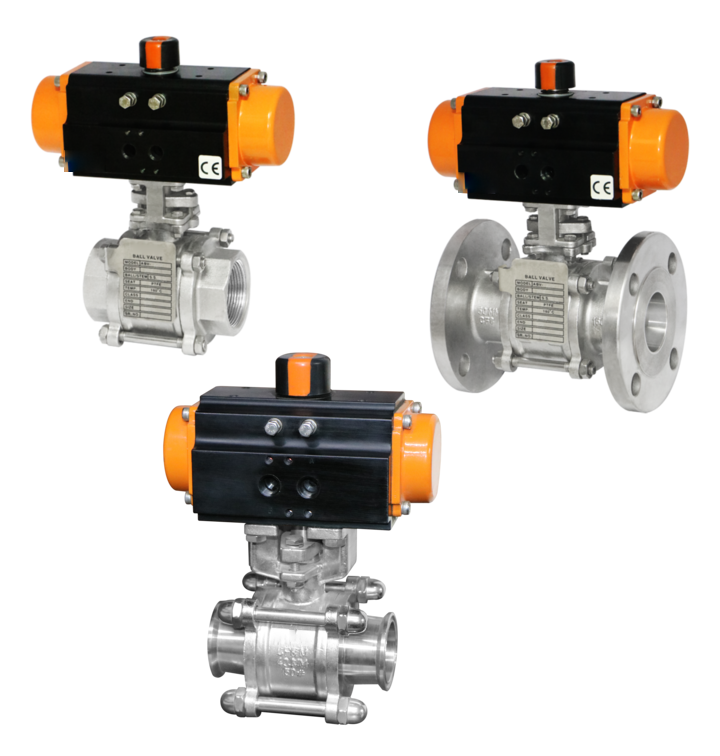

3 Pc. Ball Valve With Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 1/2" to 12" |
| Ball Valve | 3 Piece Design |
| MOC | CF8 / CF8M / WCB C.S / PP |
| Ends | Screwed / Flanged Socket Weld / TC End |

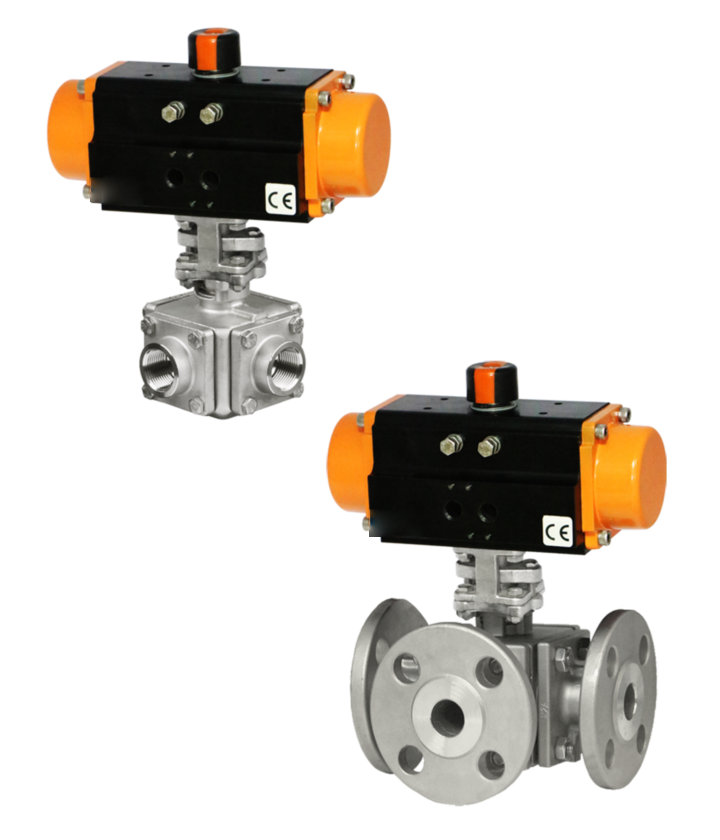

3 Way -4 Way Ball Valve With Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 1/2" to 6" |
| Way | 3 Way / 4 Way |
| MOC | CF8 / CF8M / WCB C.S / PP |
| Ends | Screwed / Flanged Socket Weld |

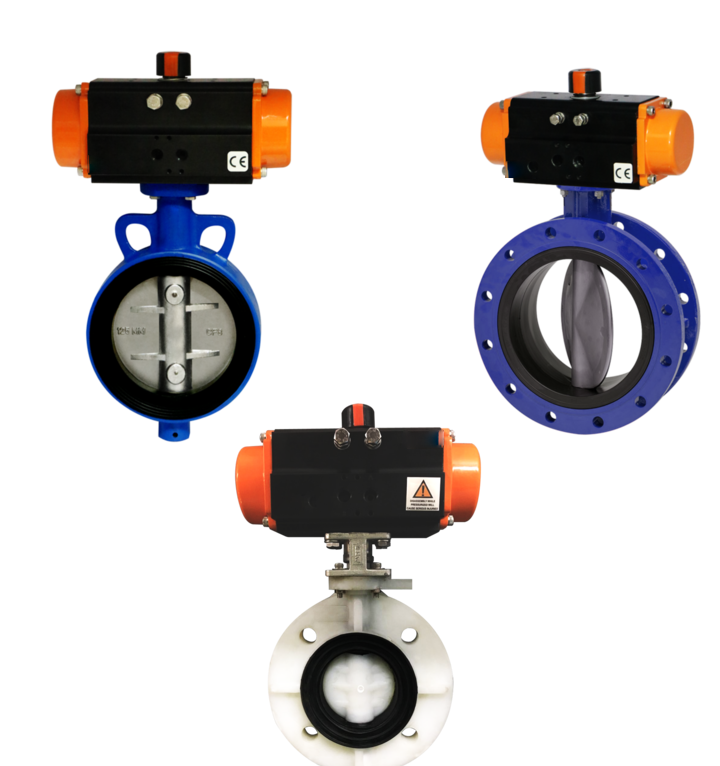

Butterfly Valve With Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 1.1/2" to 20" |
| Valve Body | Cast Iron / WCB / CF8 / CF8M |
| Disc | SG Iron / CF8 / CF8M |
| Seals | Nitrile / EPDM / Viton |
| Pressure Rating | PN 16 (Max.) |
| Oper.Temp.Range | 80°C / 120°C |

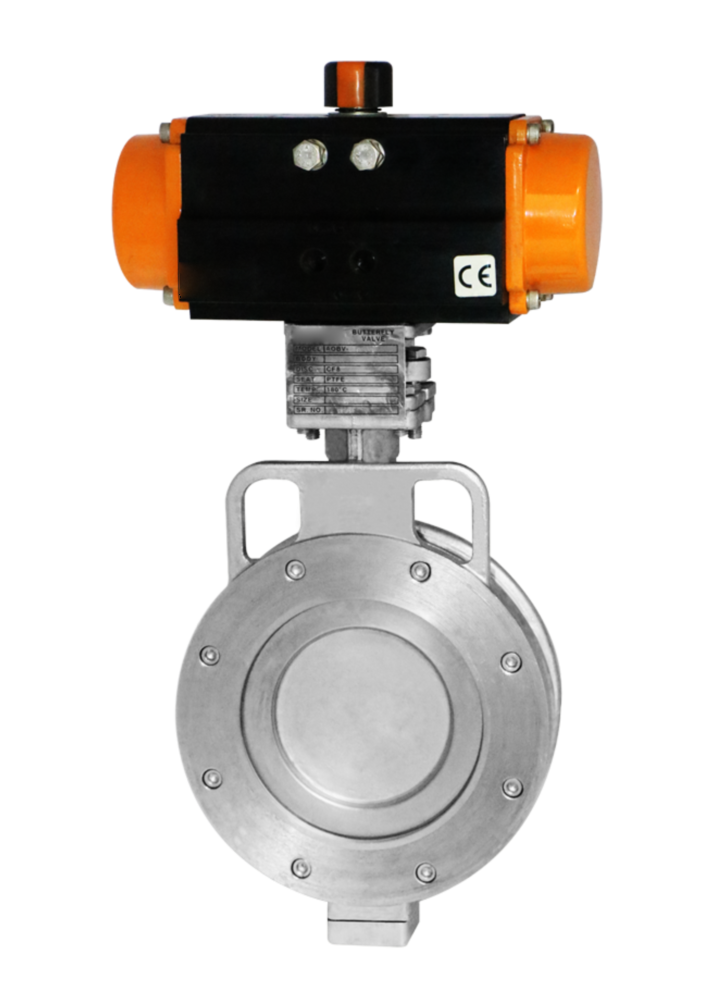

off. Set Disc Butterfly Valve with Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 1.1/2" to 12" |
| Valve Body | CF8 / CF8M / WCB |
| Disc | CF8 / CF8M |
| Seat | PTFE Replacable / GFT |
| Mounting | Universal |
| Press.Rating | ANSI 150# |
| Opr. Temp. | 180°C / 220°C |

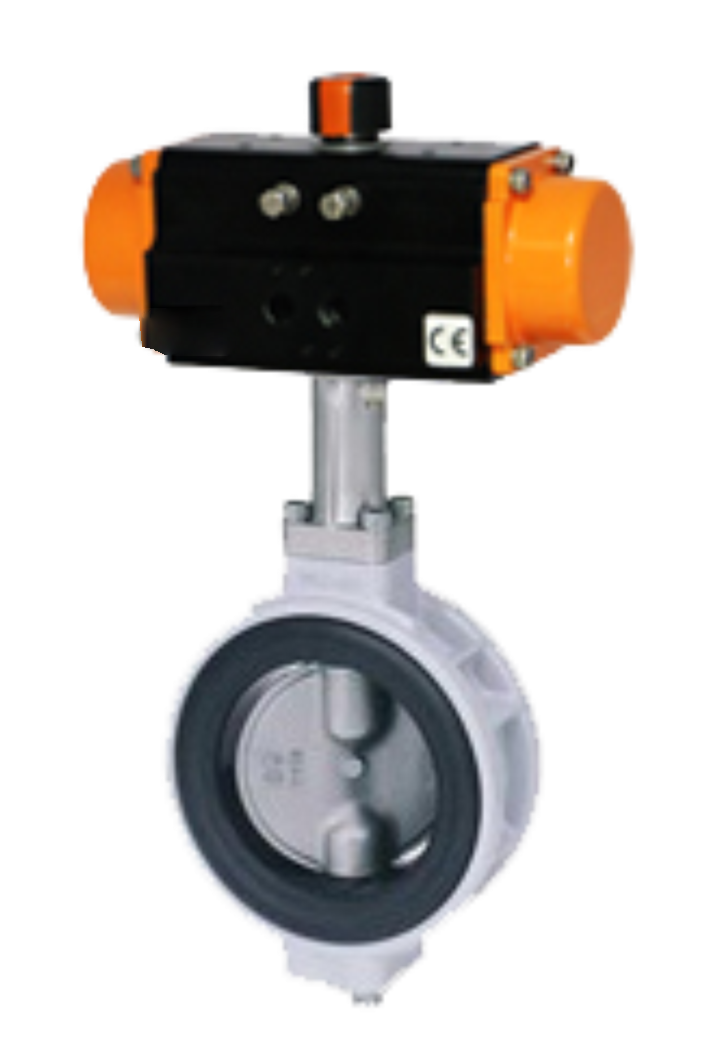

Aluminium Butterfly Valve with Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 2" to 6" |
| Valve Body | Aluminium |
| Disc | CF8 / CF8M |
| Seals | EPDM Replaceable |
| Pressure | 10 Bar |
| Temperature | 100°C / 120°C |

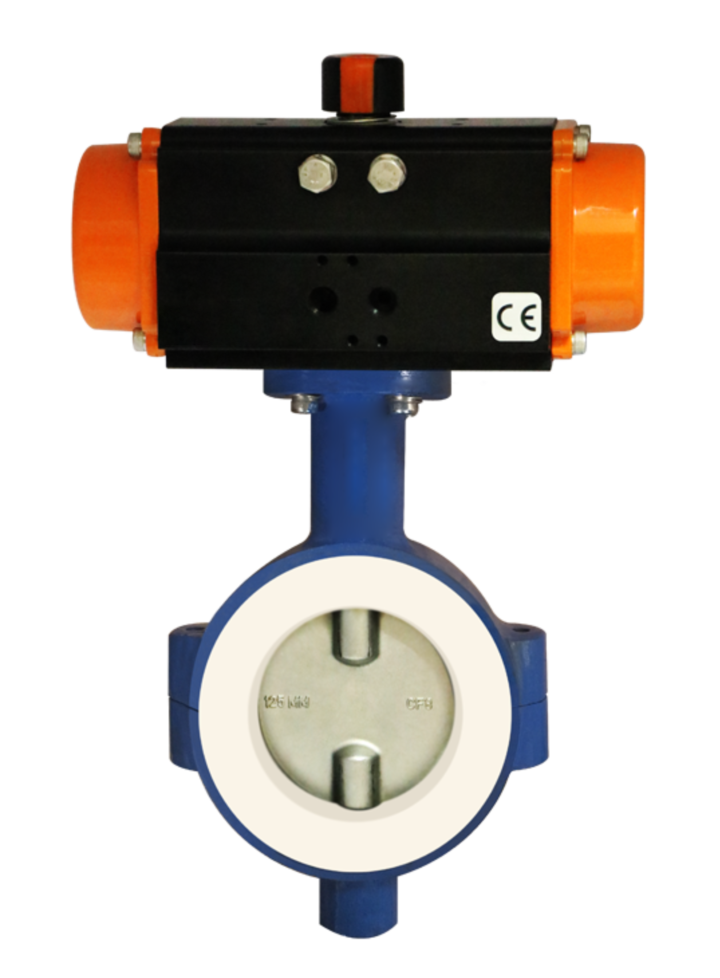

FEP Lined Butterfly Valve with Pneumatic Rotary Actuator
| Actuator | Single / Double Acting |
|---|---|
| Size Range | 1.1/2" to 14" |
| Valve Body | SG Iron / CF8 / CF8M |
| Disc | CF8 / CF8M |
| Seals | FEP |
| Pressure Rating | 7 kg/cm? |
| Oper.Temp.Range | FEP Upto 180°C |

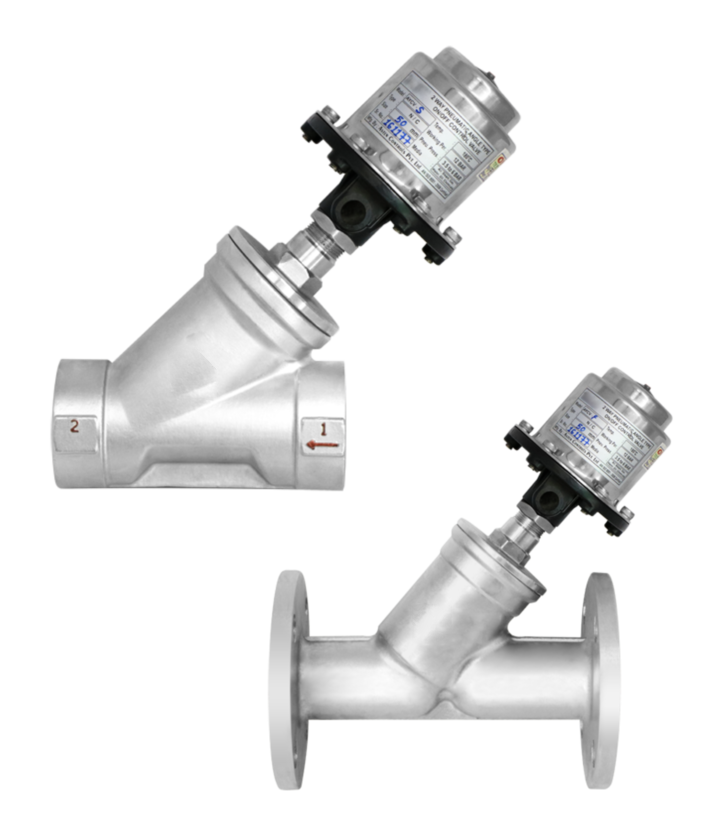

2/2 Way Pneumatic Angle Type ON/OFF Control Valve
| Type | Normally Close / Open |
|---|---|
| Size Range | 1/2" to 3” |
| Body | CF8 / CF8M |
| Pneu. Press. | 3.5 to 7 Bar |
| Working Press. | Upto 16 Bar |
| Working Temp. | 180 °C |
| Ends | Screwed / Flanged / TC End |
| Media | Air, Water, Oil, Gas Steam & Chemicals |

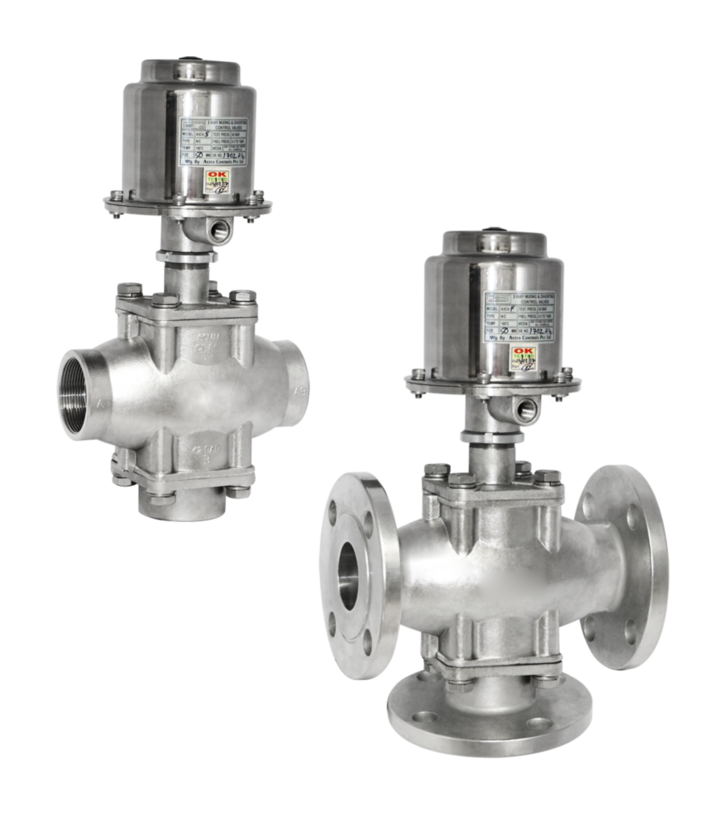

3/2 Way Pneumatic 42 kg Control Valve (Mixing & Diverting Valve)
| Type | Normally Close / Open |
|---|---|
| Size Range | 1/2" to 2” |
| Body | CF8 / CF8M |
| Pneu. Press. | 3.5 to 7 Bar |
| Working Press. | Upto 42 Bar |
| Working Temp. | 180 °C |
| Ends | Screwed / Flanged |
| Media | Air, Water, Oil, Gas Steam & Chemicals |

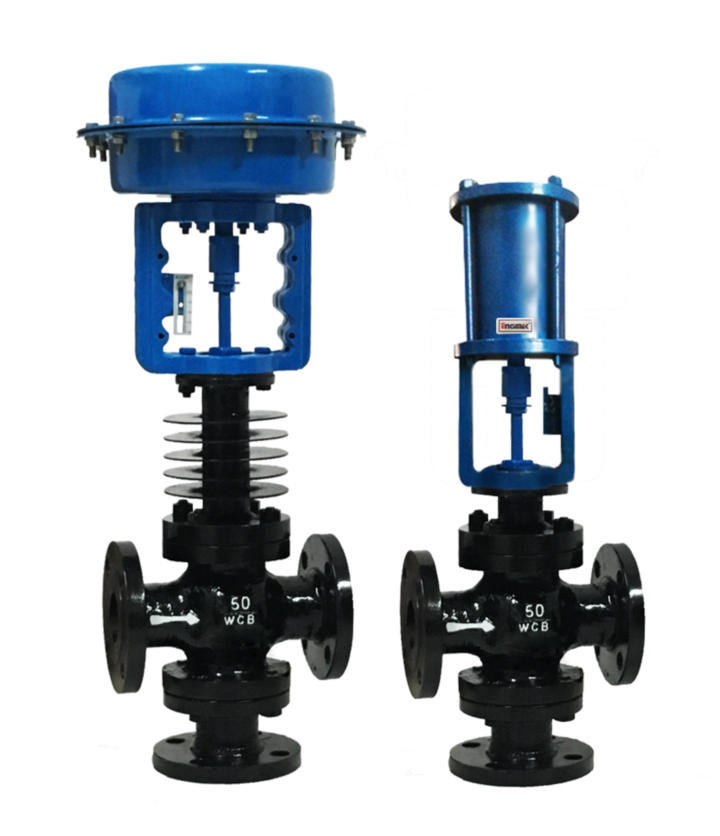

2/2 & 3/2 Way High Thermic Fluid Control Valve
| Operation | Diaphragm Type / Cylinder |
|---|---|
| Type | Diaphragm Type Thermic Fluid Control Valve |
| Size Range | 1" to 8" |
| Body & End Piece | WCB/S.S. |
| Diaphragm | Nitrile Canvas Moulded |
| Diaphragm Cover | Sheet, Metal, Pressing |
| Working Press. | 150# |
| Working Temp. | Upto 450 °C |
| Seating | Metal to Metal |
| Media | Thermic Fluid |

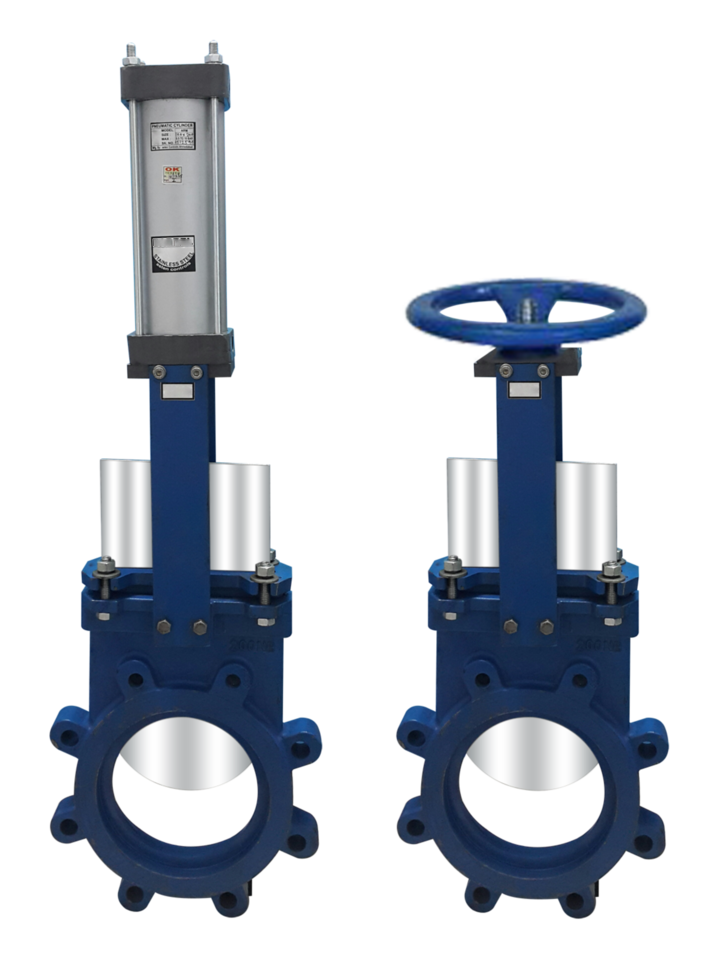

Lug Type Knife Edge Gate Valve
| Operation | Pneumatic / Manual |
|---|---|
| Size Range | 2” to 20” |
| Valve Body | Cl/CS/CF8/CF8M |
| Seals | AISI SS 304 / 316 |
| Gland Packing | Metal to Metal / NRV |
| Leakage Class | Cotton Graphite Rope |
| Oper.Temp.Range | IV to V |

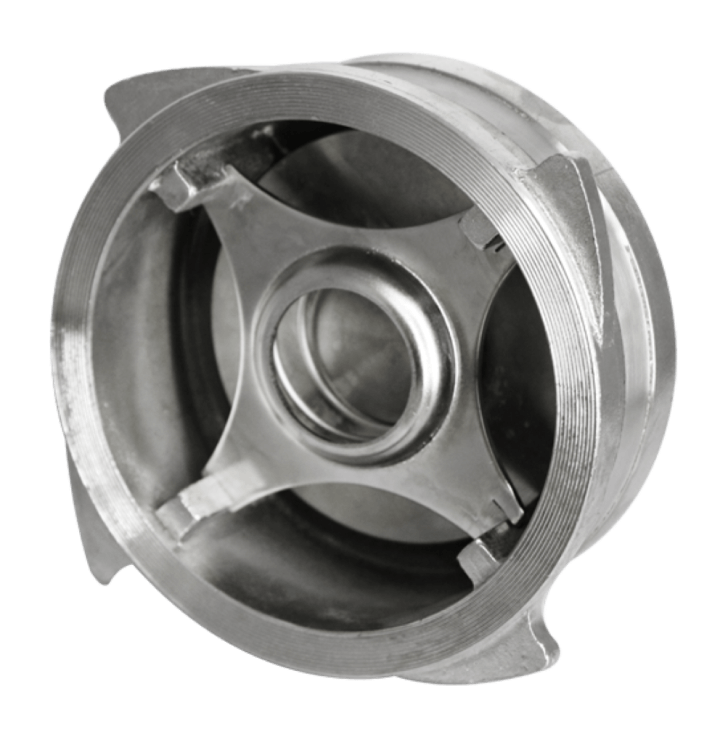

Disc Check Valve Non Slam
| Size Range | 1/2" to 8" |
|---|---|
| Body | CF8 / CF8M |
| Disc | S.S. 304 / S.S. 316 |
| Disc Seat | Metal to Metal / PTFE |
| Spring | Standard |
| Max.Oper.Press. | PN - 40 |
| Max.Oper.Temp. | Upto 300OC |
